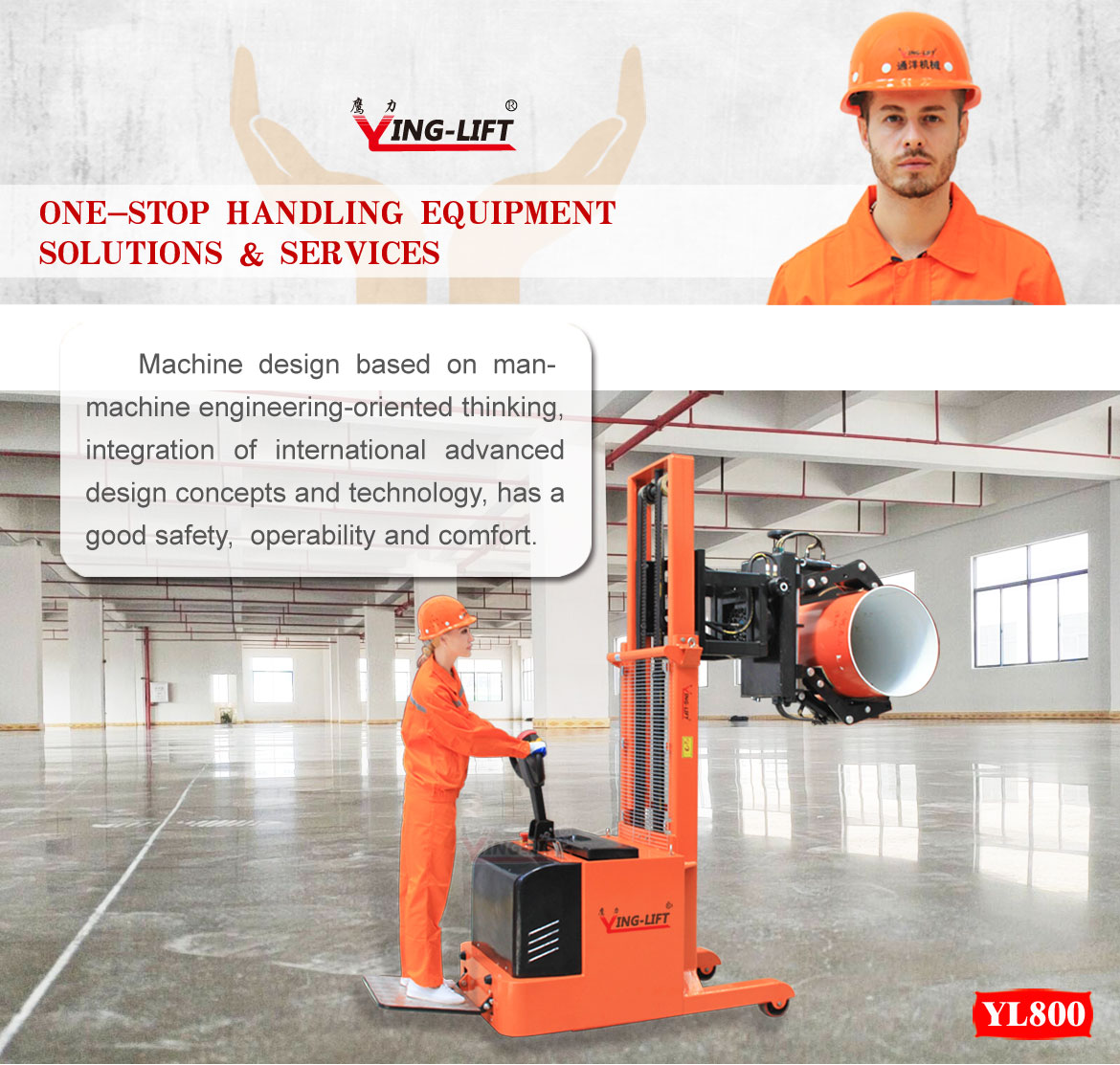

YL800 360 Degree Full Electric Counter Balance Drum Rotator

Introduce

1. Max. Load capacity 800kg
2. Adjustable clamping arm is suitable for any round drums with φ230-830mm diameter
3. Drums can be 360 degrees two-way continuous rotation
4. You can operate the clamp arm at any angle
5. Power drive, transport, lift and tilt 55 gallon steel and stainless drums
6. Manned pedal, can be operated by one people, labor saving & high efficiency
7. With step-less speed regulator, high-power reversing switch, integrated hydraulic pump stations, power walking driving wheel

Product Parameter

ModelYL800
Drive typeFull electric
Operating typeStanding operation
Rated load capacity 800kg
Turning radius2150mm
Max.grade ability(fully-loaded/no-load) 3% / 5%
Driving wheel sizeØ250mm×80mm
WheelPolyurethane
Controlling typeElectromagnetic braking
Steering typeEPS(electric power steering)
Drive motor power1.2kw
Lifting motor power 2.2kw
Noise level<70db(A)
Battery voltage/capacity 24/240V/Ah
Charger 24/30V/A
Net weight 1190kg
Rotating range 360°

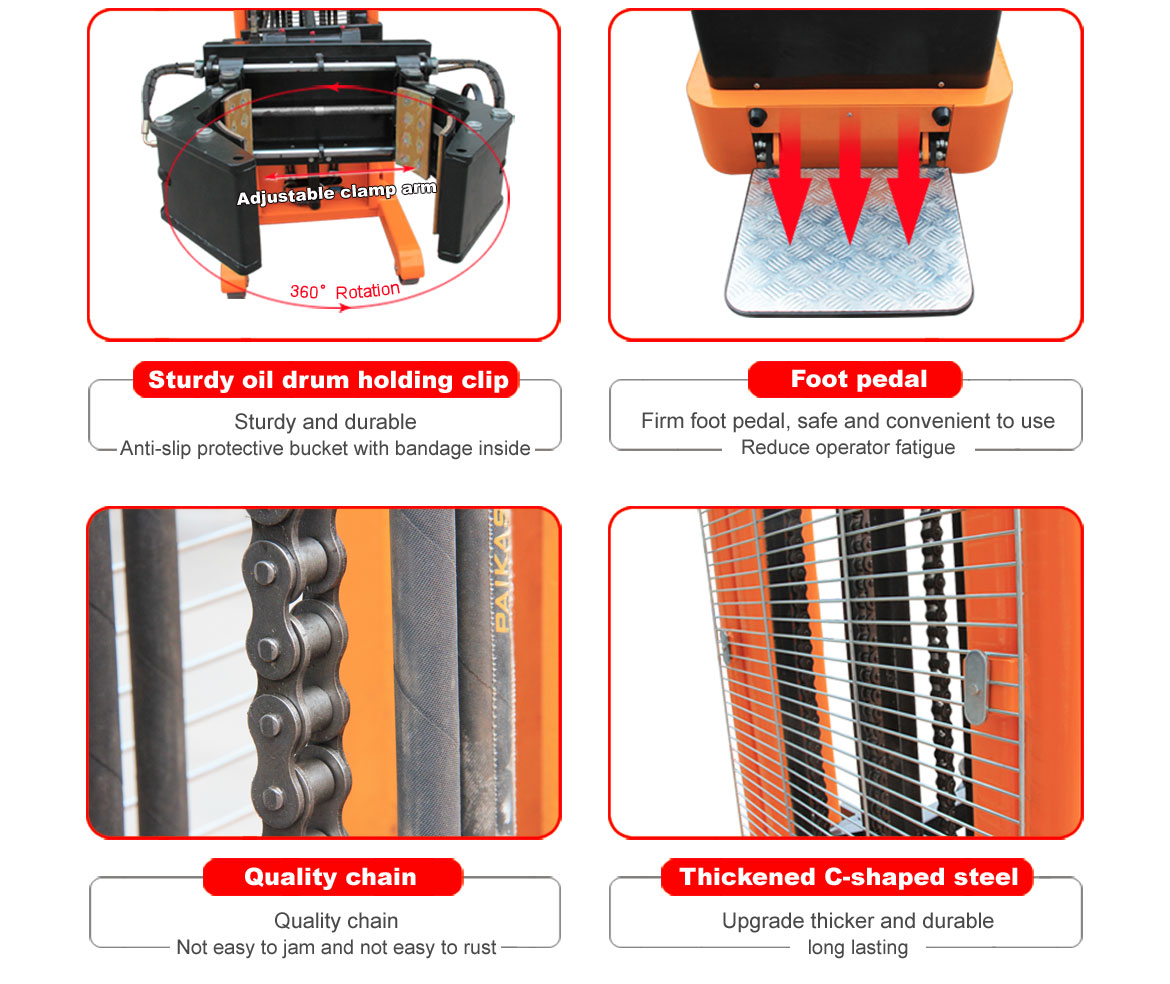

Product Details
