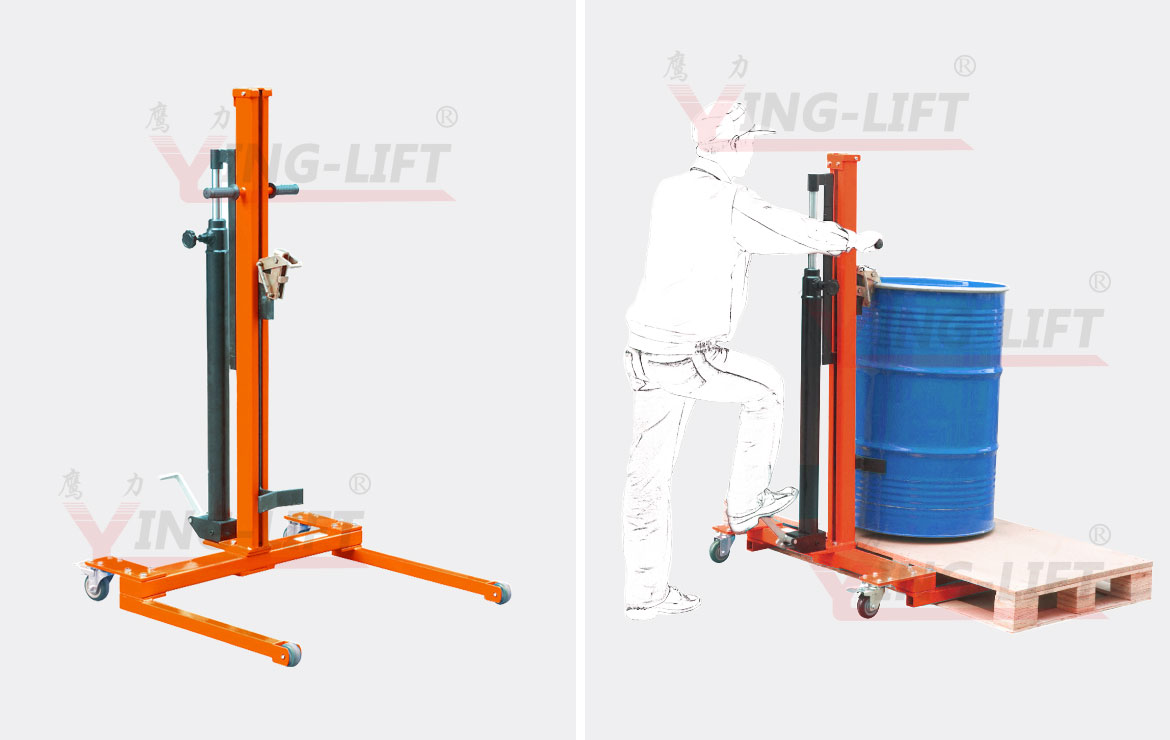

WA30B Hydraulic Drum Truck WA series

Introduce

◆Ergonomic lifts, transports, and places poly, steel, or fiber drums on or off pallets.
◆A spring-loaded clamp securely holds any rimmed drum.
◆High lifting height for ledge and car.
◆Compat design and easy operation.
◆Easy disassembly for storage in small carton.

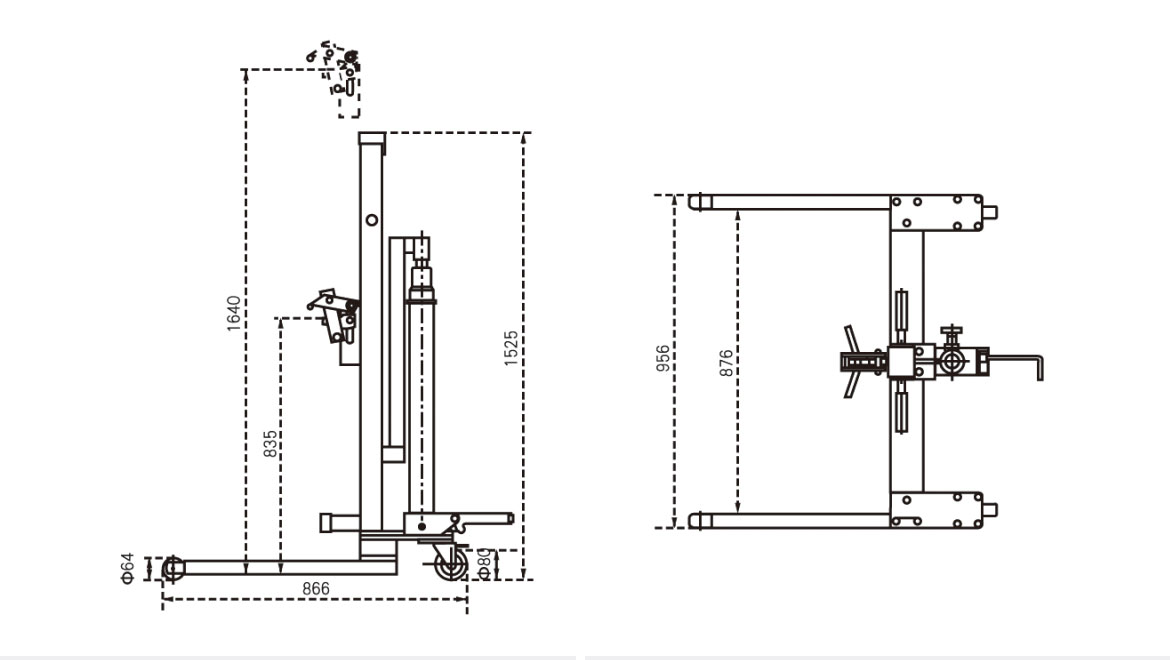

Product Parameter

Model		WA30B
Lifting Capacity	kg	300
Drum Size		210L or 55 gallon
Front Wheel	mm	Ø64×37
Rear Castor	mm	Ø80×32
Dimension H1	mm	835
Dimension H2	mm	1640
Overall Dimension	mm	866×956×1525
Net Weight	kg	68
