YLF1001... Hot Sale Stationary Electric Lifting Table Equipment

Introduce

▲ Heavy Duty Design.
▲ YLF1001 series lift tables meet EN norm and ANSI/ASME safety standards.
▲ These models can be used in above-floor or in-floor pit applications.

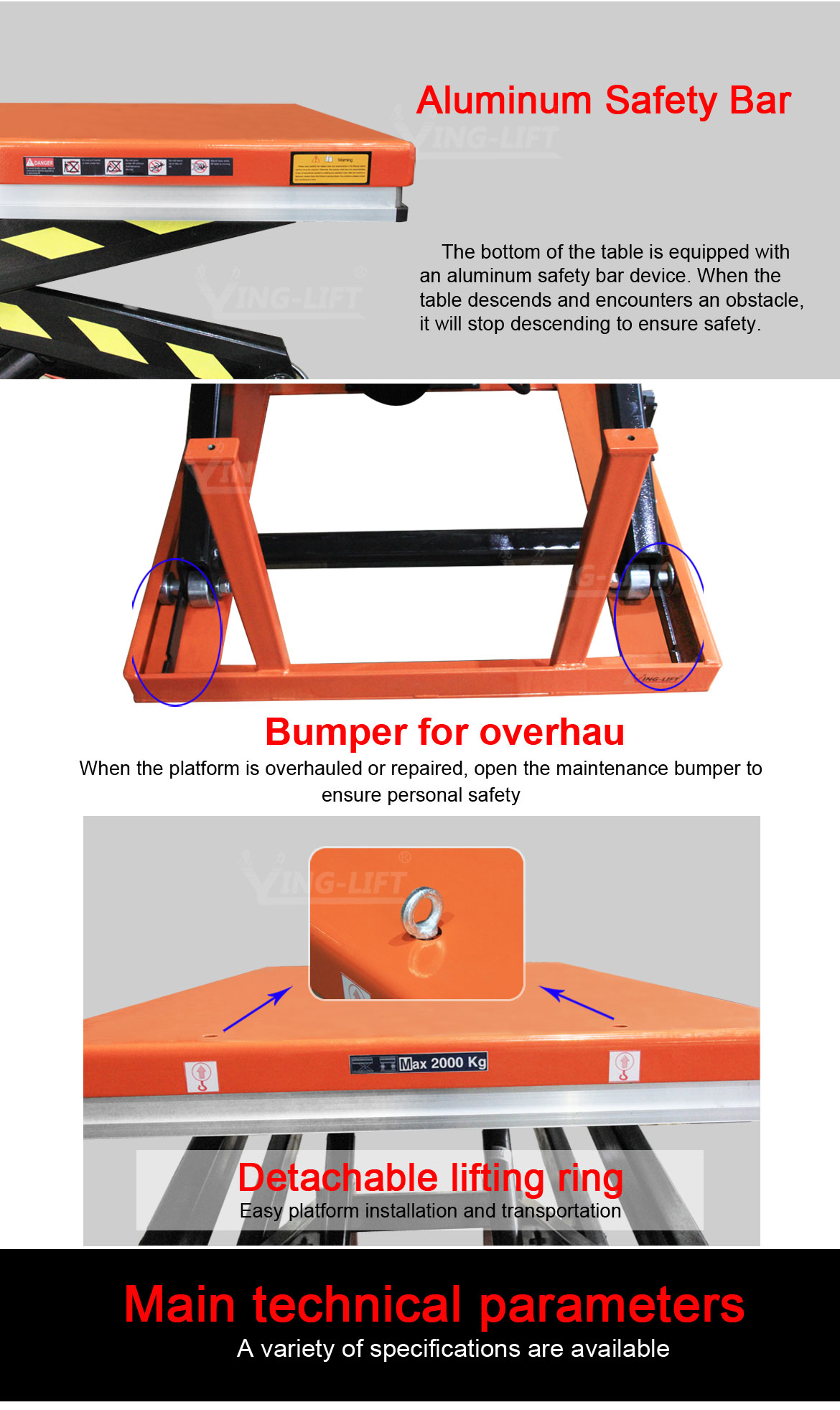

▲ Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
▲ Low-tension (24V) control box with up-down buttons.
▲ Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

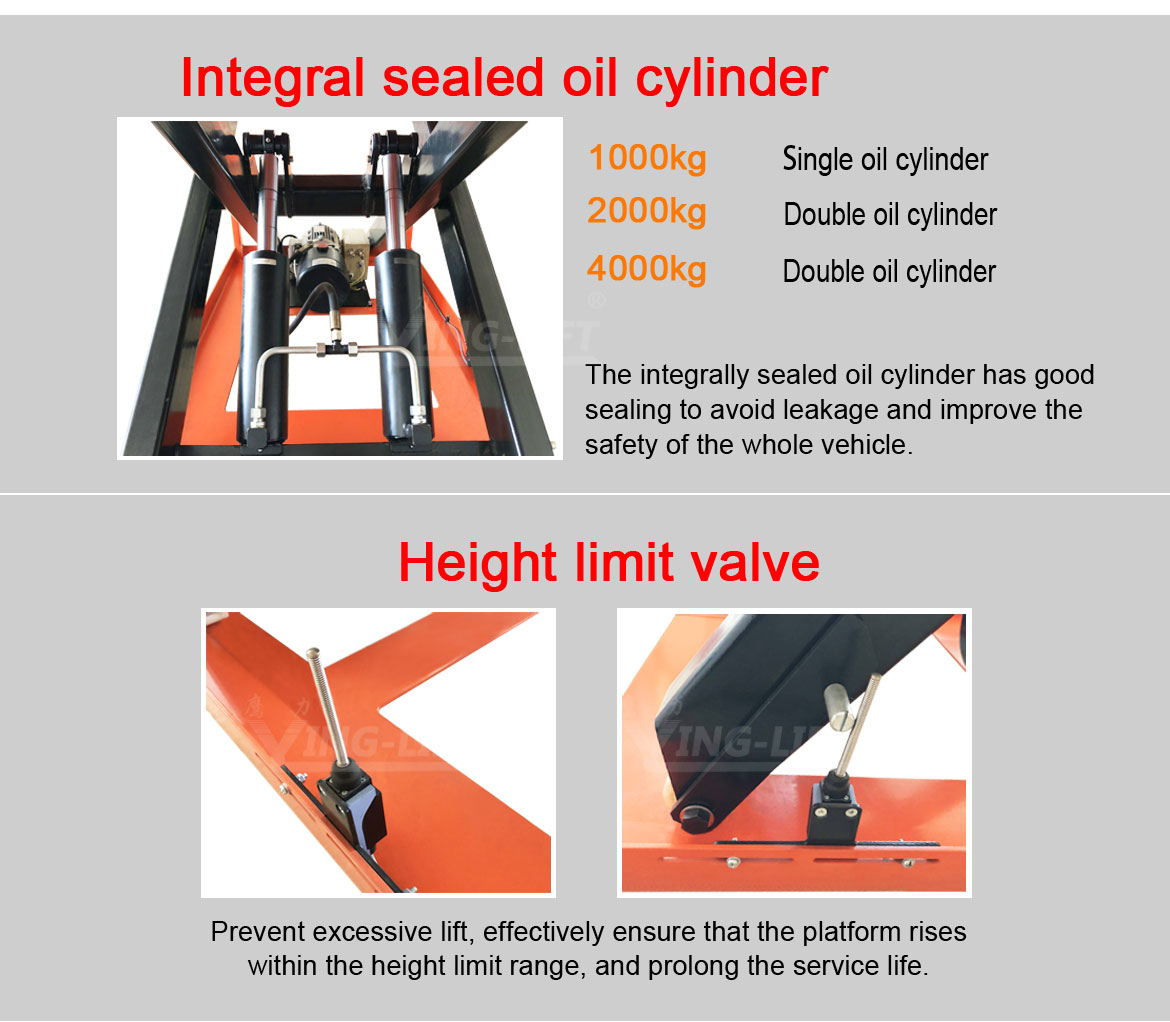

▲ Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
▲ Safety clearance between scissors to prevent trapping during operation.
▲ Self lubricating bushings on pivot points.
▲ Removable lifting eye to facilitable handling and lift table installation.
▲ Customized platform size and power pack are available.

Product Parameter

Model	Capacity(kg)	Platform Height Min/Max(mm)	Platform Size(L*W)mm	Base Size(L*W)mm	Lift Times	Battery	Net Weight(kg)
YLF1001	1000	205/990	1300×820	1240×640	20-25	380V/50Hz	160
YLF1002	1000	205/990	1600×1000	1240×640	20-25	380V/50Hz	186
YLF1003	1000	240/1300	1700×850	1580×640	30-35	380V/50Hz	200
YLF1004	1000	240/1300	1700×1000	1580×640	30-35	380V/50Hz	210
YLF1005	1000	240/1300	2000×850	1580×640	30-35	380V/50Hz	212
YLF1006	1000	240/1300	2000×1000	1580×640	30-35	380V/50Hz	223
YLF1007	1000	240/1300	1700×1500	1580×1320	30-40	380V/50Hz	365
YLF1008	1000	240/1300	2000×1700	1580×1320	30-40	380V/50Hz	430
YLF2001	2000	230/1000	1300×850	1220×785	20-25	380V/50Hz	235
YLF2002	2000	230/1000	1600×1000	1220×785	20-25	380V/50Hz	268
YLF2003	2000	250/1300	1700×850	1600×785	25-35	380V/50Hz	289
YLF2004	2000	250/1300	1700×1000	1600×785	25-35	380V/50Hz	300
YLF2005	2000	250/1300	2000×850	1600×785	25-35	380V/50Hz	300
YLF2006	2000	250/1300	2000×1000	1600×785	25-35	380V/50Hz	315
YLF2007	2000	250/1300	1700×1500	1600×1435	25-35	380V/50Hz	415
YLF2008	2000	250/1400	2000×1800	1600×1435	25-35	380V/50Hz	500
YLF4001	4000	250/1400	1700×1200	1600×900	30-40	380V/50Hz	375
YLF4002	4000	240/1050	2000×1200	1600×900	30-40	380V/50Hz	405
YLF4003	4000	240/1400	2000×1000	1980×900	30-40	380V/50Hz	470
YLF4004	4000	300/1400	2000×1200	1980×900	35-40	380V/50Hz	490
YLF4005	4000	300/1400	2200×1000	1980×900	35-40	380V/50Hz	480
YLF4006	4000	300/1400	2200×1200	1980×900	35-40	380V/50Hz	505
YLF4007	4000	300/1300	1700×1500	1620×1400	35-45	380V/50Hz	570
YLF4008	4000	300/1300	2200×1800	1620×1400	35-45	380V/50Hz	655
