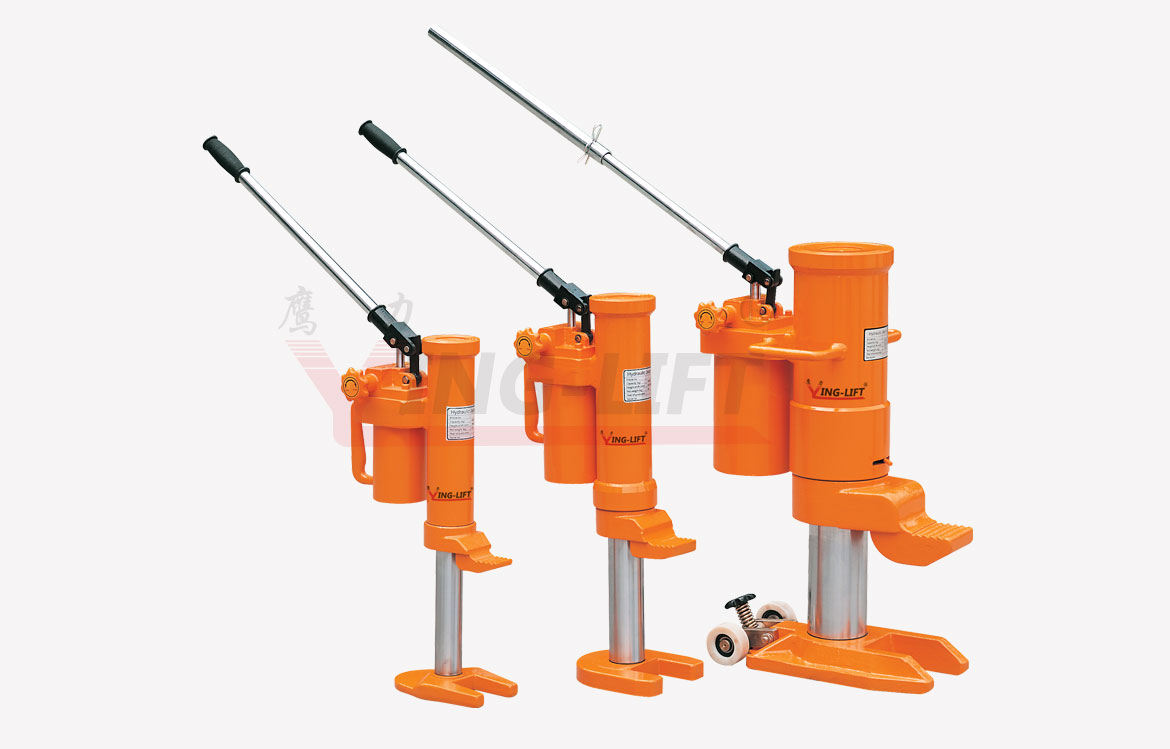

HM50/HM100/HM250 Hydraulic Jack

Introduce

◆Compact and stable construction;

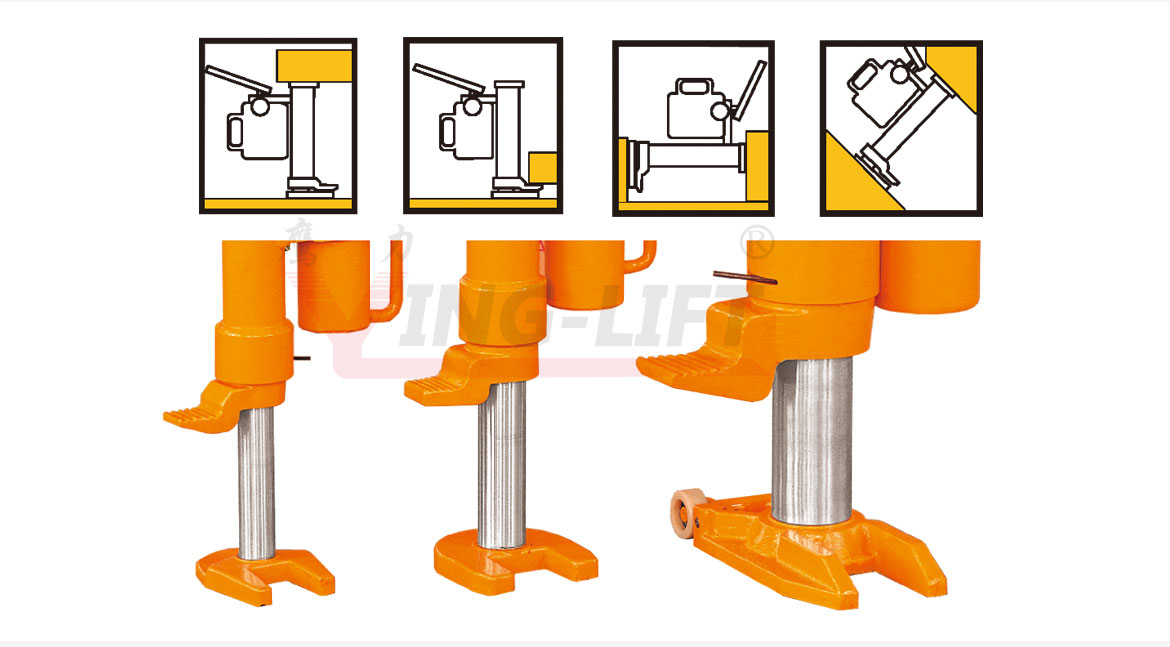

◆Can be used in any position;
◆Housing revolves 360 degrees.
◆Lowering speed can be accurately adjusted;
◆Protected against overloading;
◆Pump lever is removable;
◆According to CE and US standard USA ASME/ANSI B30.1.1986.

CAUTIONS!
◆To avoid possible personal injury or damage to equipment.
◆Do not exceed the maximum load capacity of the jack.
◆Do not add additional load to a lifted load.
◆Do not use in unstable or hazardous positions.
◆Unit must be used on flat surfaces able to carry the load.
◆The load must be stable during lifting.
◆An unstable load may cause the jack or load to slip.
◆Do not use jack(s) if damaged, altered or in poor condition.
◆Do not lift people or loads with people on them.
◆Do not lift at the end of the toe. Fully engage the load with the toe.

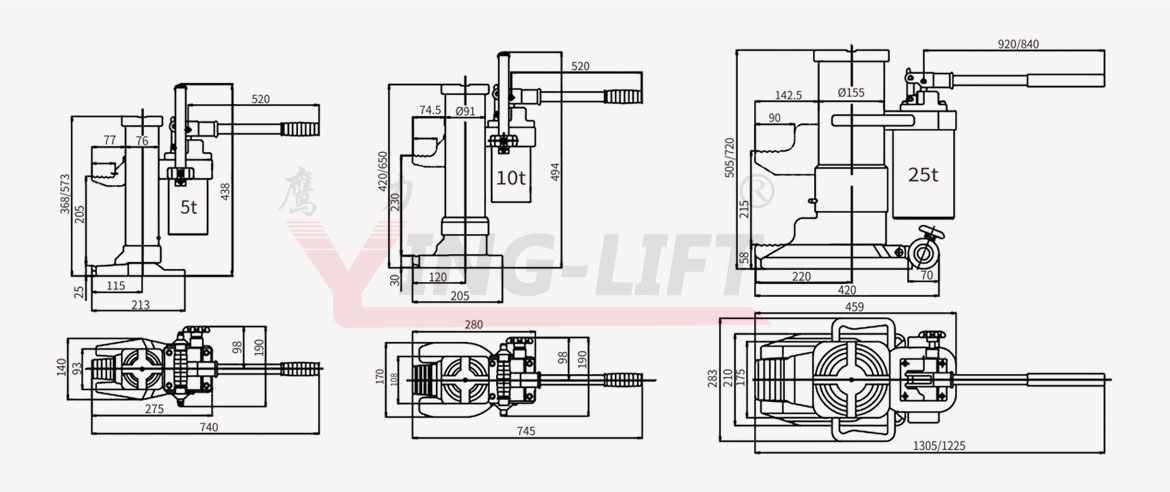

Product Parameter

Model
HM50HM100HM250
Load Capacitytons51025
Lifting Range of Footmm25-23030-26058-273
Lifting Range of Headmm368-573420-650505-720
Max. Lever Forcekg384040
Net Weightkg2535102


Product Details

Hydraulic Jack

Hydraulic Jack

Hydraulic Jack
