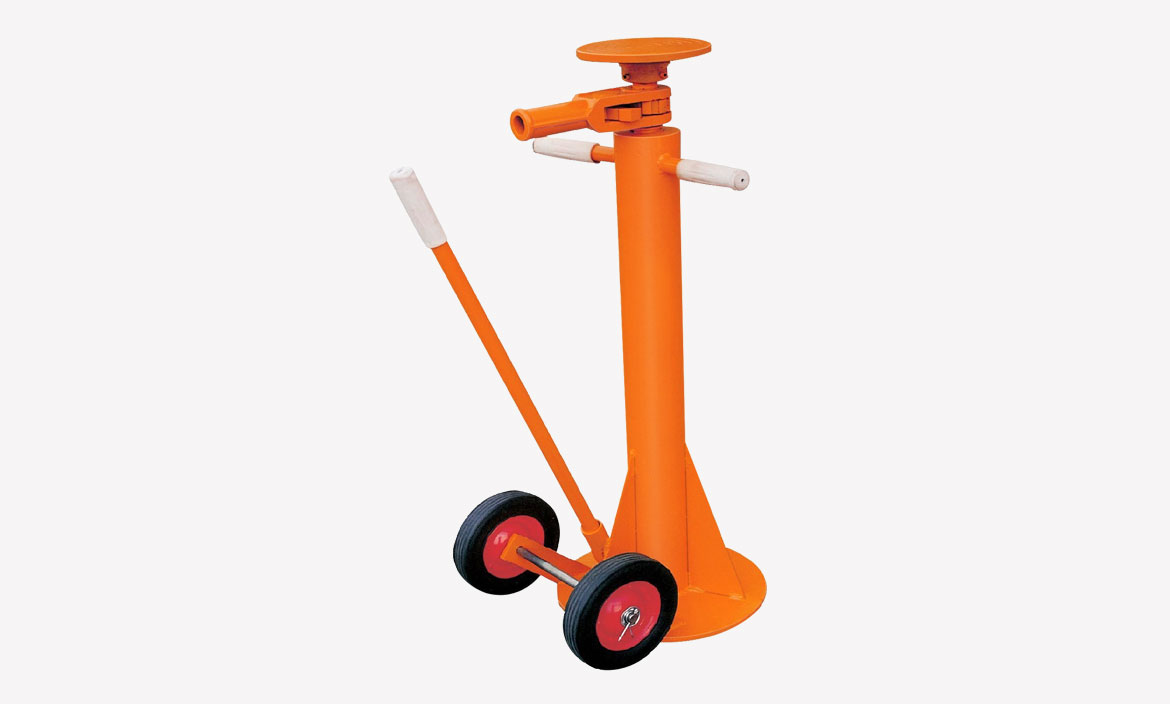

TJ50/TJ50B Trailer Stabilizer Jack
Introduce
Importance!"must" for safely loading and unloading trailers!
◆Meet OSHA Specification with our wide variety of Trailer Stabilizing Jacks OSHA 1910.178(k)(3) states. "Fixed jacks may be necessary to support a semi-trailer and prevent upending during the loading or unloading when the trailer is not coupled to a tractor".
Trailer stabilizing Jacks
◆Ratchet screw design, reversible.
◆Reflective collar and safety yellow painting.
Product Parameter
| Model | TJ50 | TJ50B | |
| Service Range | mm(in.) | 1000-1300(40-51) | 990-1300(39-51) |
| Static Capacity | kg(lb.) | 45000(100000) | 45000(100000) |
| Lifting Capacity | kg(lb.) | 18000(40000) | 22700(50000) |
| Cap Size | mm(in.) | Ø203(8) | Ø203(8) |
| Base Plate | mm(in.) | Ø355(14) | Triangular,406(16) |
| Wheel size | mm(in.) | Semi-pneumatic,Ø254(10) | Solid Rubber,Ø254(10) |
| Net Weight | kg(lb.) | 41(90) | 48.6(107) |
