YLE01 Electric Single Shop Crane

Introduce

◆High-power walking drive wheel;
◆Joint venture hydraulic pump station, lasting power of Valta free maintenance battery ;
◆High-quality cylinder, heavy-duty design, easy to adjust the arm distance through the cylinder;
◆With safety valve, foldable design and small package size;
◆Suitable for areas where the forklift can’t enter to operate.

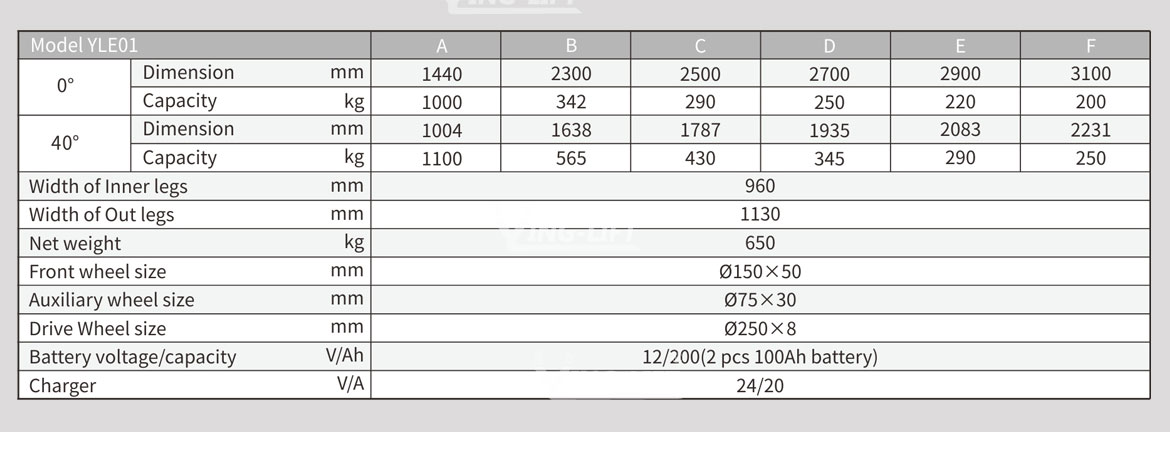

Product Parameter

Model YLE01			A	B	C	D	E	F
0度	Dimension	mm	1440	2300	2500	2700	2900	3100
0度	Capacity	kg	1000	342	290	250	220	200
40度	Dimension	mm	1004	1638	1787	1935	2083	2231
40度	Capacity	kg	1100	565	430	345	290	250
Width of Inner legs		mm	985	985	985	985	985	985
Width of Out legs		mm	1170	1170	1170	1170	1170	1170
Net weight		kg	568	568	568	568	568	568
Front wheel size		mm	Ø150×50	Ø150×50	Ø150×50	Ø150×50	Ø150×50	Ø150×50
Auxiliary wheel size		mm	Ø75×30	Ø75×30	Ø75×30	Ø75×30	Ø75×30	Ø75×30
Drive Wheel size		mm	Ø250×80	Ø250×80	Ø250×80	Ø250×80	Ø250×80	Ø250×80
