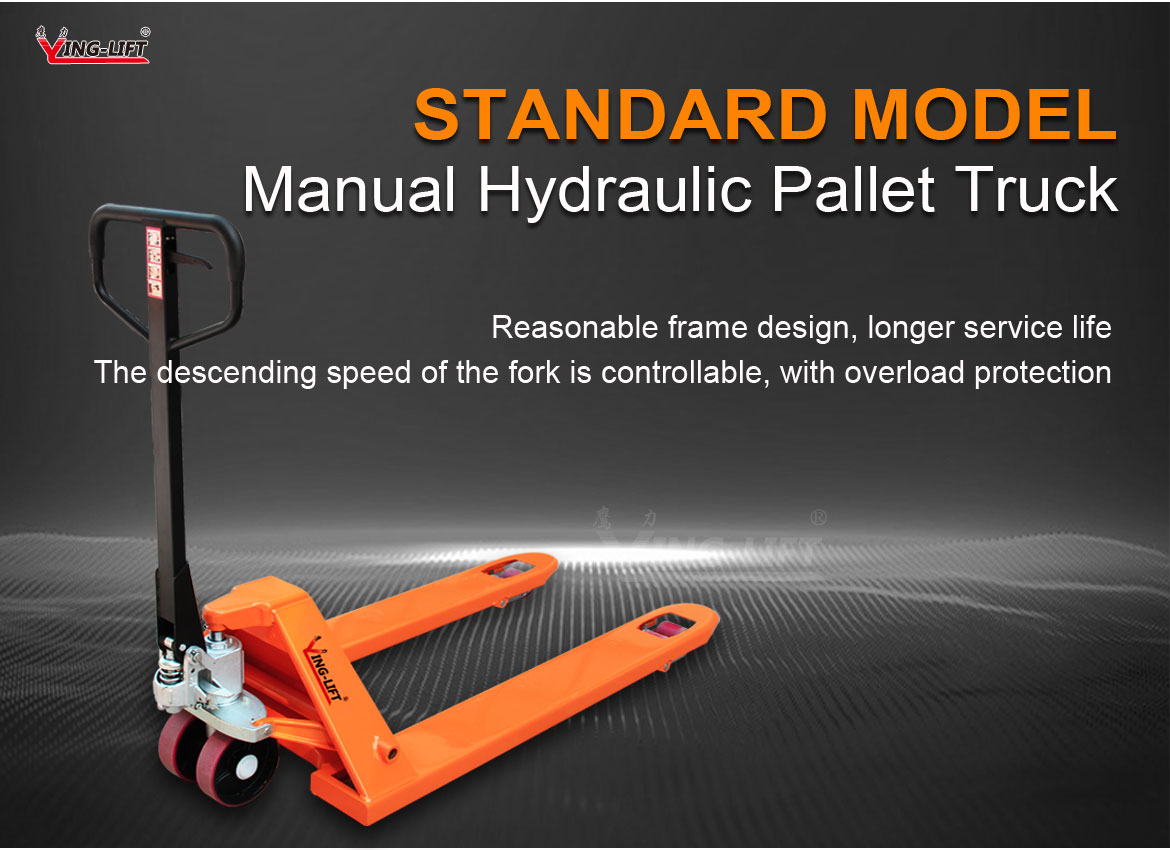

YLA20S Standard Model

Introduce

◆Integral pump;
◆Steel casting technology of the pump body;
◆Longer service life;
◆Adjustable falling speed and with overload protection;
◆Nylon wheel design is more efficient to use, suitable for machining workshop.

Product Parameter

ModelYLA20SYLA20LYLA25SYLA25LYLA30SYLA30L
Capacity2000kg2000kg2500kg2500kg3000kg3000kg
Min./Max Fork Height85mm/200mm85mm/200mm85mm/200mm85mm/200mm85mm/200mm85mm/200mm
Single Fork Width160mm160mm160mm160mm160mm150mm
Fork Width540mm685mm540mm685mm540mm685mm
Fork Length1150mm1220mm1150mm1220mm1150mm1220mm
Front Wheel (Nylon Tandem)Ø80mm×70mmØ80mm×70mmØ80mm×70mmØ80mm×70mmØ80mm×70mmØ80mm×70mm
Rear Wheel (Nylon)Ø160mm×50mmØ200mm×50mmØ200mm×50mmØ200mm×50mmØ200mm×50mmØ200mm×50mm
Net Weight 64kg70kg64kg70kg73kg79kg
