◆New design with larger piston offer you real 1000kg and 1500kg capacity
◆Character: Extremely easy to pump and light make this unit very suitable as combined hand pallet truck and lift table.
◆Quick-lift as standard with automatic transfer to normal lifting with loads over 150kg.
◆Automatic descending speed control by a uniquely hydraulic valve,the decending speed always keeps same regardless the truck with or without load. lt will prevent cargo damage from fast descending.

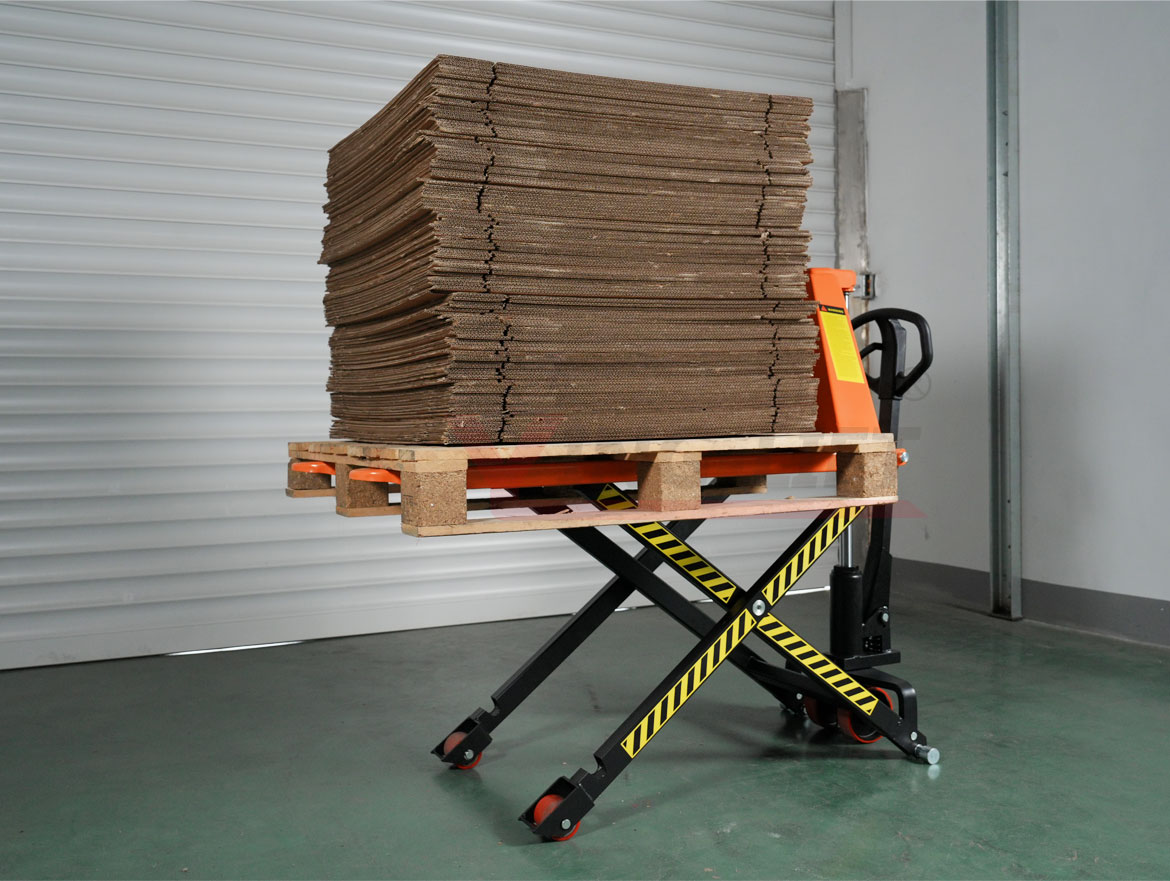

◆Front support legs and adjustable stabilizers extended to the floor automatically when the forks reach a height of 420mm, to ensure maximum stability and optimum braking.
◆Ergonomic warm handle offers you simple and comfortable operation.
◆Heavy duty design: 4mm steel plate fork frame and larger lift piston ensure the truck to reach rated capacity.
◆Conforms to EN1757-4.

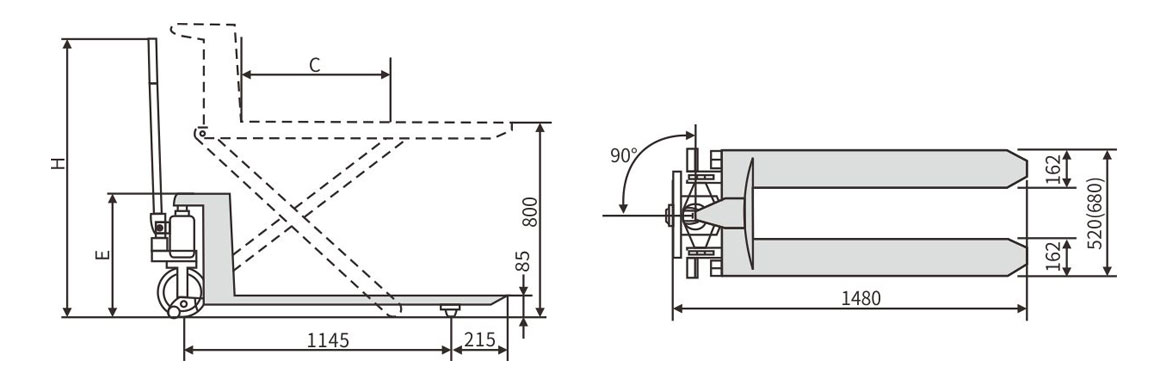

Model | YLD5210 | YLD6810 | YLD5215 | YLD6815 | |
Operation Type | / | Manual | Manual | Manual | Manual |
Load Capacity | kg | 1000 | 1000 | 1500 | 1500 |
Min. Fork Height | mm | 85 | 85 | 85 | 85 |
Max. Fork Height | mm | 800 | 800 | 800 | 800 |
Fork Length | mm | 1140 | 1140 | 1100 | 1100 |
Overall Forks Width | mm | 520 | 680 | 520 | 680 |
Individual Fork Width | mm | 162 | 162 | 162 | 162 |
Load Center | mm | 600 | 600 | 560 | 560 |
Front Wheel | mm | Ø75×75 | Ø75×75 | Ø75×75 | Ø75×75 |
Net Weight (without battery) | kg | 105 | 112 | 118 | 125 |
Size | mm | 530 | 530 | 530 | 530 |
1250 | 1250 | 1250 | 1250 |
