◆New design with larger piston offer you real 1000kg and 1500kg capacity
◆Character: Extremely easy to pump and light make this unit very suitable as combined hand pallet truck and lift table.
◆Quick-lift as standard with automatic transfer to normal lifting with loads over 150kg.
◆Automatic descending speed control by a uniquely hydraulic valve,the decending speed always keeps same regardless the truck with or without load. lt will prevent cargo damage from fast descending.
◆Front support legs and adjustable stabilizers extended to the floor automatically when the forks reach a height of 420mm, to ensure maximum stability and optimum braking.
◆Ergonomic warm handle offers you simple and comfortable operation.
◆Heavy duty design: 4mm steel plate fork frame and larger lift piston ensure the truck to reach rated capacity.
◆Conforms to EN1757-4.

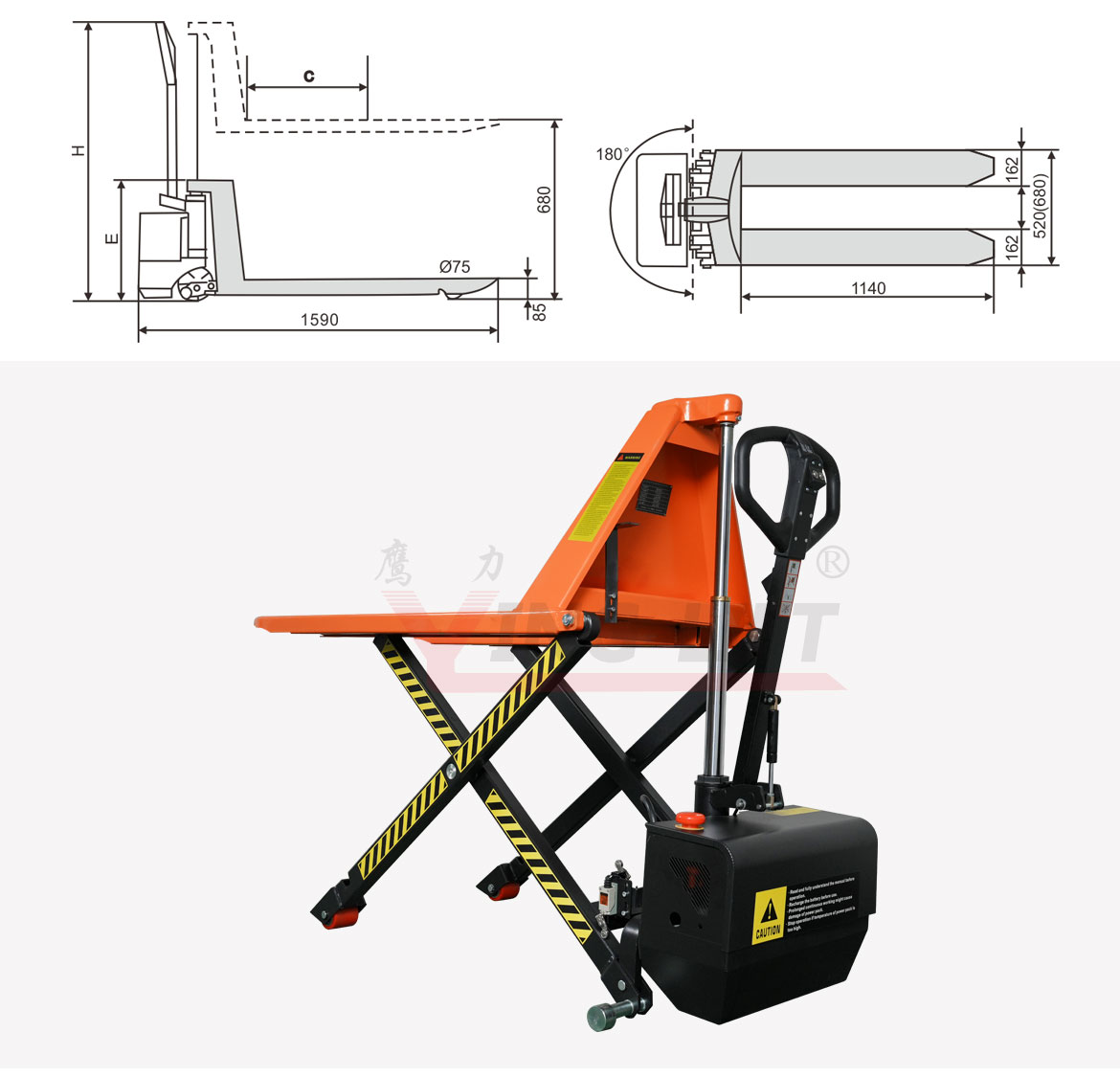

| Model | YLD5210E | YLD6810E | YLD5215E | YLD6815E | |
| Operation Type | / | Semi-Electric | Semi-Electric | Semi-Electric | Semi-Electric |
| Load Capacity | kg | 1000 | 1000 | 1500 | 1500 |
| Minimum height of the fork | mm | 85 | 85 | 85 | 85 |
| Maximum lifting height ofthe fork | mm | 800 | 800 | 800 | 800 |
| Maximum lifting stroke | mm | ≥715 | ≥715 | ≥715 | ≥715 |
| Outside width ofthe fork | mm | 540 | 680 | 540 | 680 |
| Inside width ofthe fork | mm | 220 | 360 | 220 | 360 |
| Fork size | mm | 1150×160×50 | 1150×160×50 | 1150×160×50 | 1150×160×50 |
| Length ofthe complete vehicle | mm | 1750 | 1750 | 1750 | 1750 |
| Height ofthe complete vehicle | mm | 1280 | 1280 | 1280 | 1280 |
| Load-bearing wheel size | mm | Ø80×70 | Ø80×70 | Ø80×70 | Ø80×70 |
| Driving wheel size | mm | Ø150×50 | Ø150×50 | Ø150×50 | Ø150×50 |
| Minimum turning diameter | mm | 1540 | 1540 | 1540 | 1540 |
| Power unit | v/KW | 12/1.2 | 12/1.2 | 12/1.2 | 12/1.2 |
| Wheel material | PU/Nylon | PU/Nylon | PU/Nylon | PU/Nylon | |
| Battery capacity | V/AH | 12/65 | 12/65 | 12/65 | 12/65 |
| Self-weight of the complete vehicle | kg | 142 | 145 | 145 | 148 |
| Full tray weight (2 sets/tray) | kg | 288 | 294 | 294 | 300 |
