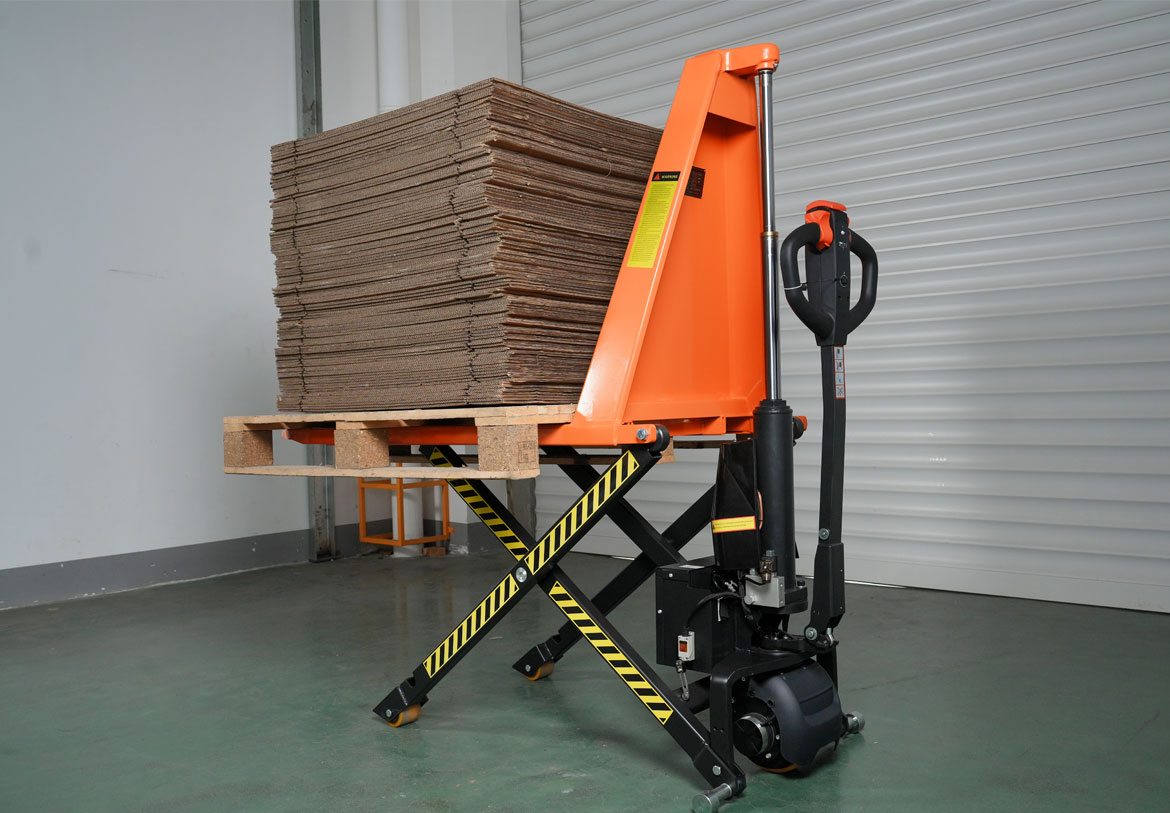

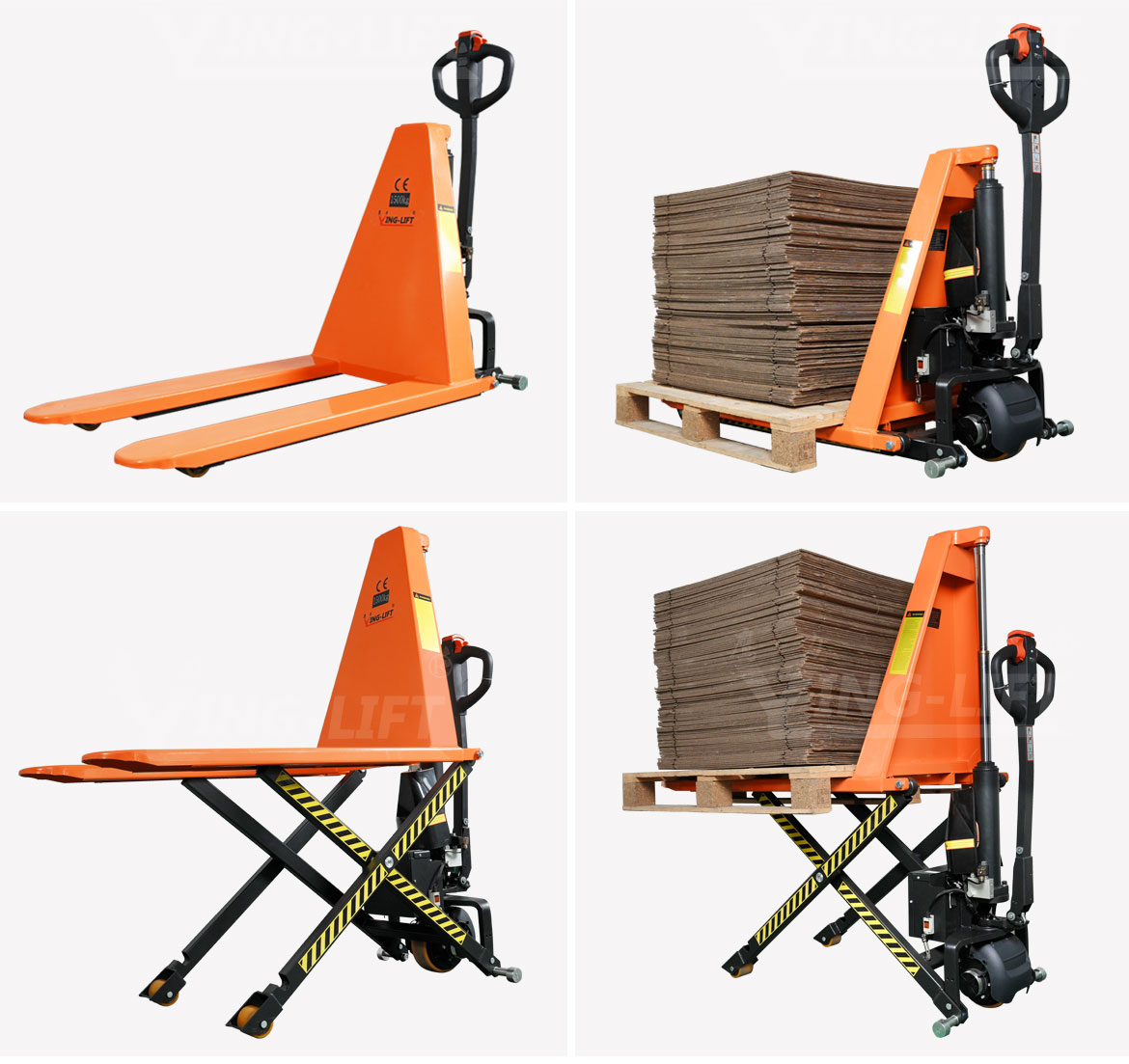

DGBZ1.5C Powered High Lift Pallet Truck
Introduce
▲Full electric control of drive and lift
▲Double cylinders design
▲Plastic handle
▲Tandem rollers

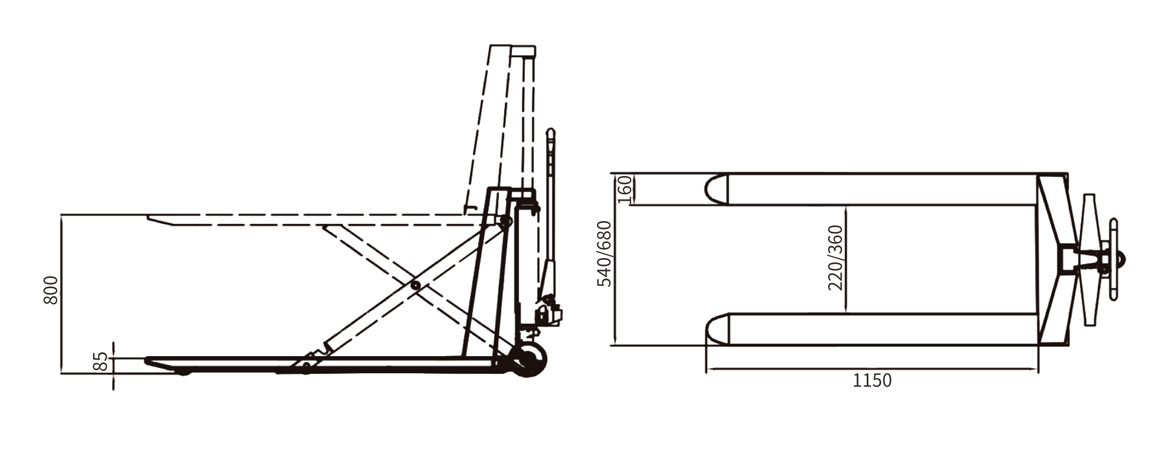

Product Parameter
| Model | DGBZ1.5C | |||
| Rated Capacity Q | kg | H≤450 mm | H:0~800 mm | |
| 1500 | 1000 | |||
| Min. Height | mm | 85 | ||
| Max. Height | mm | ≥800 | ||
| Lifting time without load | s | ≤25 | ||
| Lifting time with rated load | s | ≤20 | ≤35 | |
| Lowering speed | m/s | ≤0.1 | ||
| Fork width | mm | 560 | ||
| Single fork width | mm | 160 | ||
| Fork length | mm | 1140 | ||
| Drive wheel parameters | v/w | 24/750 | ||
| Drive wheel diameter | mm | ∅210×75 | ||
| Overall length | mm | 1794 | ||
| Turning radius | mm | 1635 | ||
| Load center distance C | mm | 600 | ||
| Overall width L2 | mm | 600 | ||
| Overall Height H1 | mm | 1293 | ||
| Driving speed | km/h | 3 | ||
| Turning speed | km/h | 2 | ||
| Motor parameters of lifting pump | v/w | 24/800 | ||
| Motor parameters of driving pump | v/w | 24/750 | ||
Lithium battery parameters | Weight | kg/pc | 5.4 | |
| Overall dimension | mm | 222×175×88 | ||
| Voltage/capacity | v/ah | 24V/20Ah | ||
| Net Weight | kg | 172 | ||
| 2 pcs G.W./N.W. | kg | 364/344 | ||
| 2 pcs packing size | mm | 1880×645×955 | ||
| Container loading capacity | Pcs | 36 | ||
