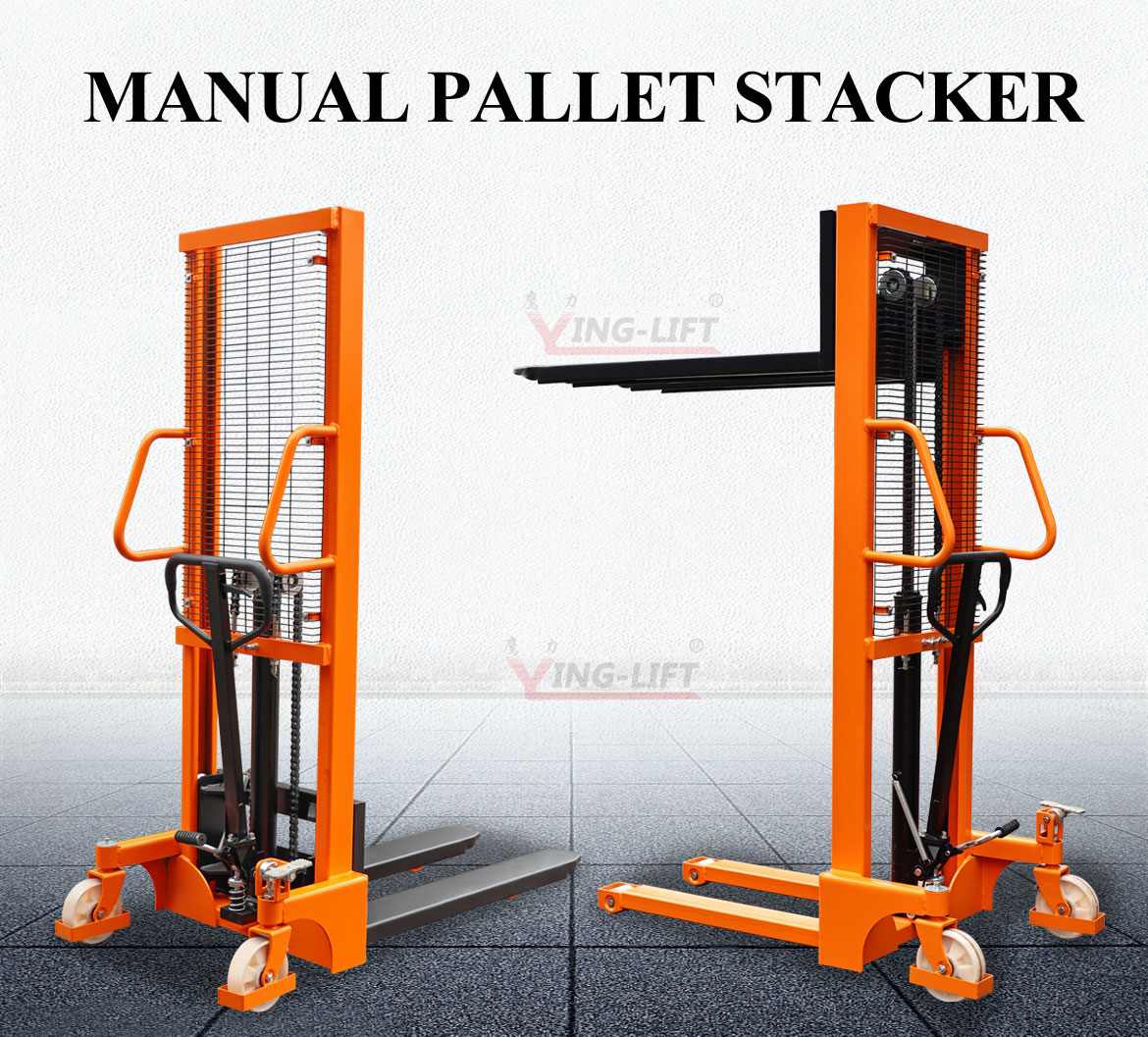

YLMS0516... Manual Pallet stacker - Single stage frame

Introduce

◆All models use wall mounted forks
◆The frame is made of channel steel, C-shaped steel, and I-beam, with single stages frames and two stages frames available for selection.

Product Parameter

Mode		YLMS0516	YLMS1016	YLMS1516	YLMS2016	YLMS3016
Capacity	kg	500	1000	1500	2000	3000
Lifting Height	mm	1600	1600	1600	1600	1600
Net weight	kg	120	147	169	180	250
Whole size(L×W×H)	mm	1400×670×2000	1450×740×2000	1450×740×2000	1450×745×2000	1450×745×2000
Column material		8 # channel steel	10 # channel steel	12 # channel steel	12 # I-beam	14 # I-beam
Wheel material		Nylon	Nylon	Nylon	Nylon	Nylon
Adjustable fork width	mm	170-500	210-560	210-560	210-560	210-560
Length of legs	mm	790	790	780	780	800
Width of single fork	mm	80	100	100	120	120
Width of legs	mm	70	70	70	70	70
