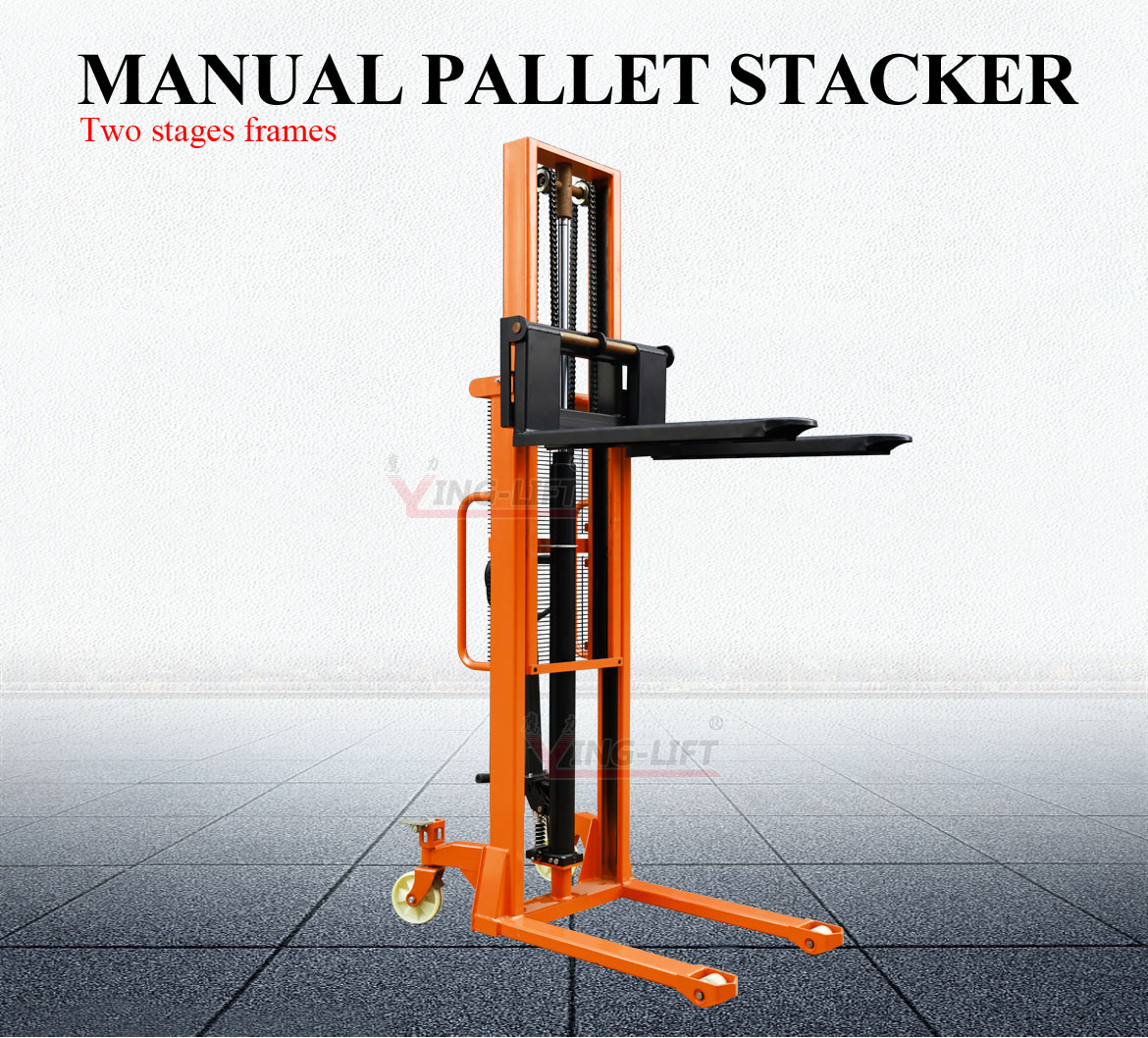

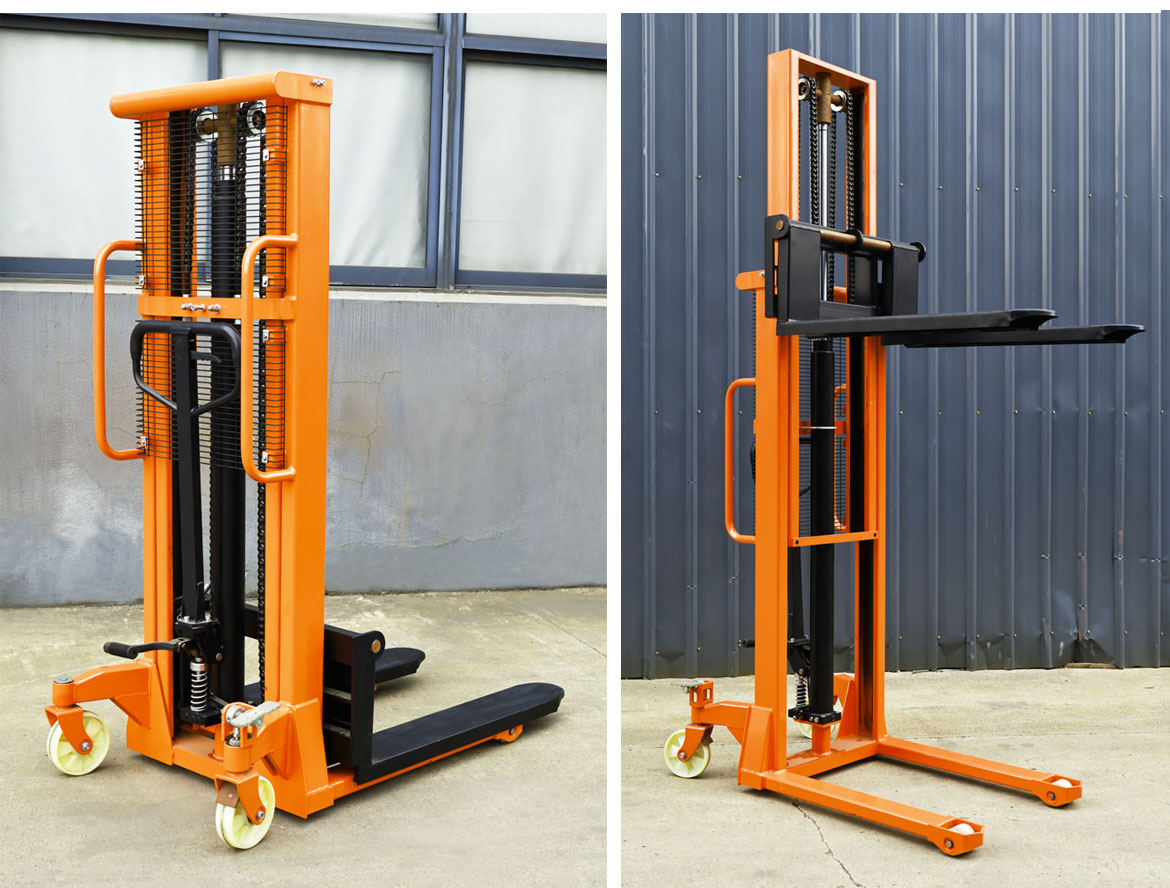

YLMS1020... Manual Pallet stacker - Two stages frames
Introduce
◆All models use wall mounted forks
◆The frame is made of channel steel, C-shaped steel, and I-beam, with single stages frames and two stages frames available for selection.
Product Parameter
| Mode | YLMS1020 | YLMS1025 | YLMS1520 | YLMS1525 | YLMS1525 | YLMS2025 | |
| Capacity | kg | 1000 | 1000 | 1500 | 1500 | 1500 | 2000 |
| Lifting Height | mm | 2000 | 2500 | 2000 | 2500 | 2500 | 2500 |
| Net weight | kg | 220 | 300 | 250 | 320 | 320 | 350 |
| Whole size(L×W×H) | mm | 1450×790×1600 | 1450×790×1850 | 1450×790×1600 | 1450×790×1850 | 1450×790×1850 | 1450×790×1850 |
| Column material | C-shaped steel | C-shaped steel | C-shaped steel | C-shaped steel | C-shaped steel | C-shaped steel | |
| Wheel material | Nylon | Nylon | Nylon | Nylon | Nylon | Nylon | |
| Adjustable fork width | mm | 210-610 | 210-610 | 210-610 | 210-610 | 210-610 | 210-610 |
| Length of legs | mm | 870 | 870 | 850 | 850 | 850 | 850 |
| Width of single fork | mm | 100 | 100 | 100 | 100 | 100 | 120 |
| Width of legs | mm | 80 | 80 | 80 | 80 | 80 | 80 |
