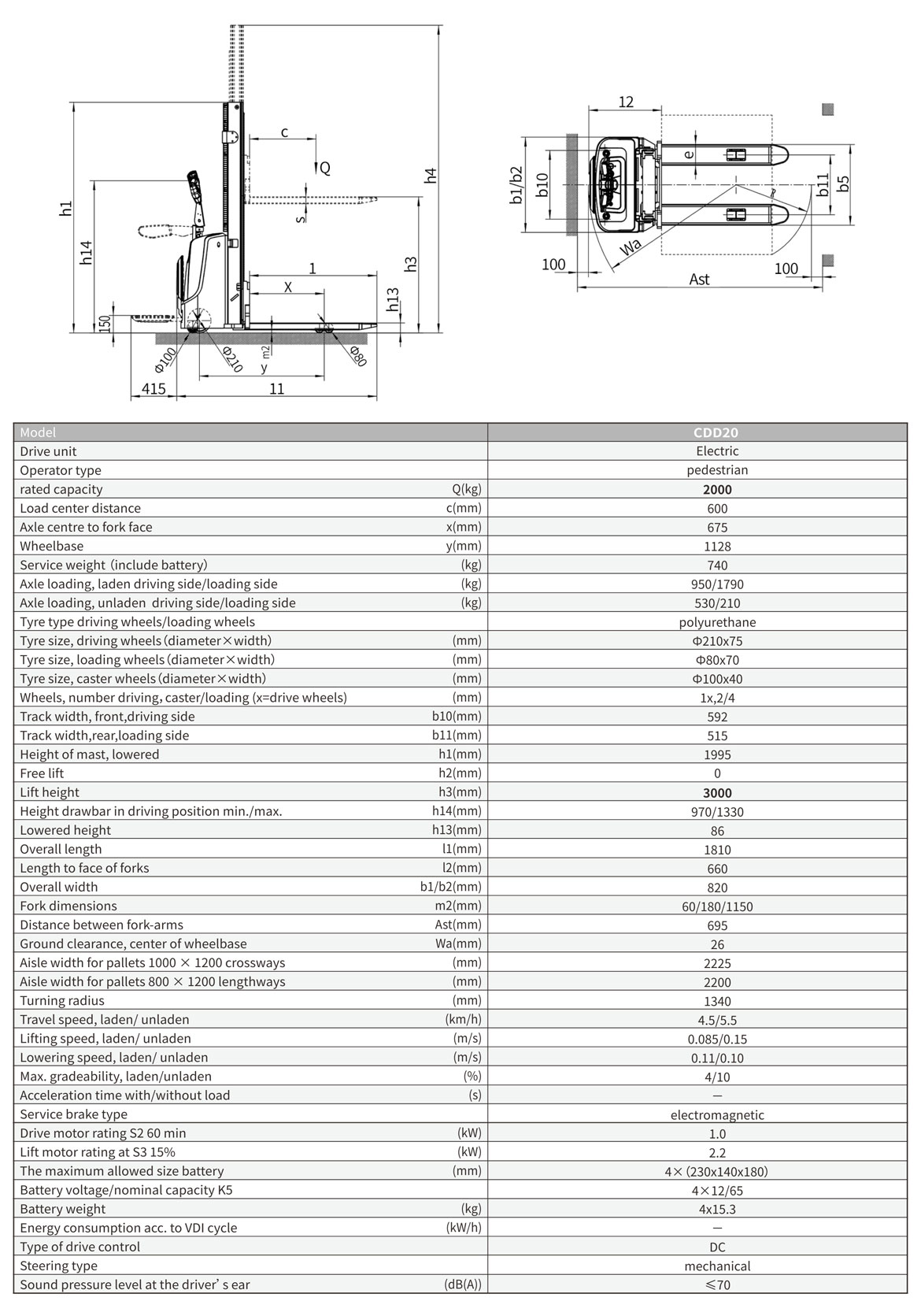

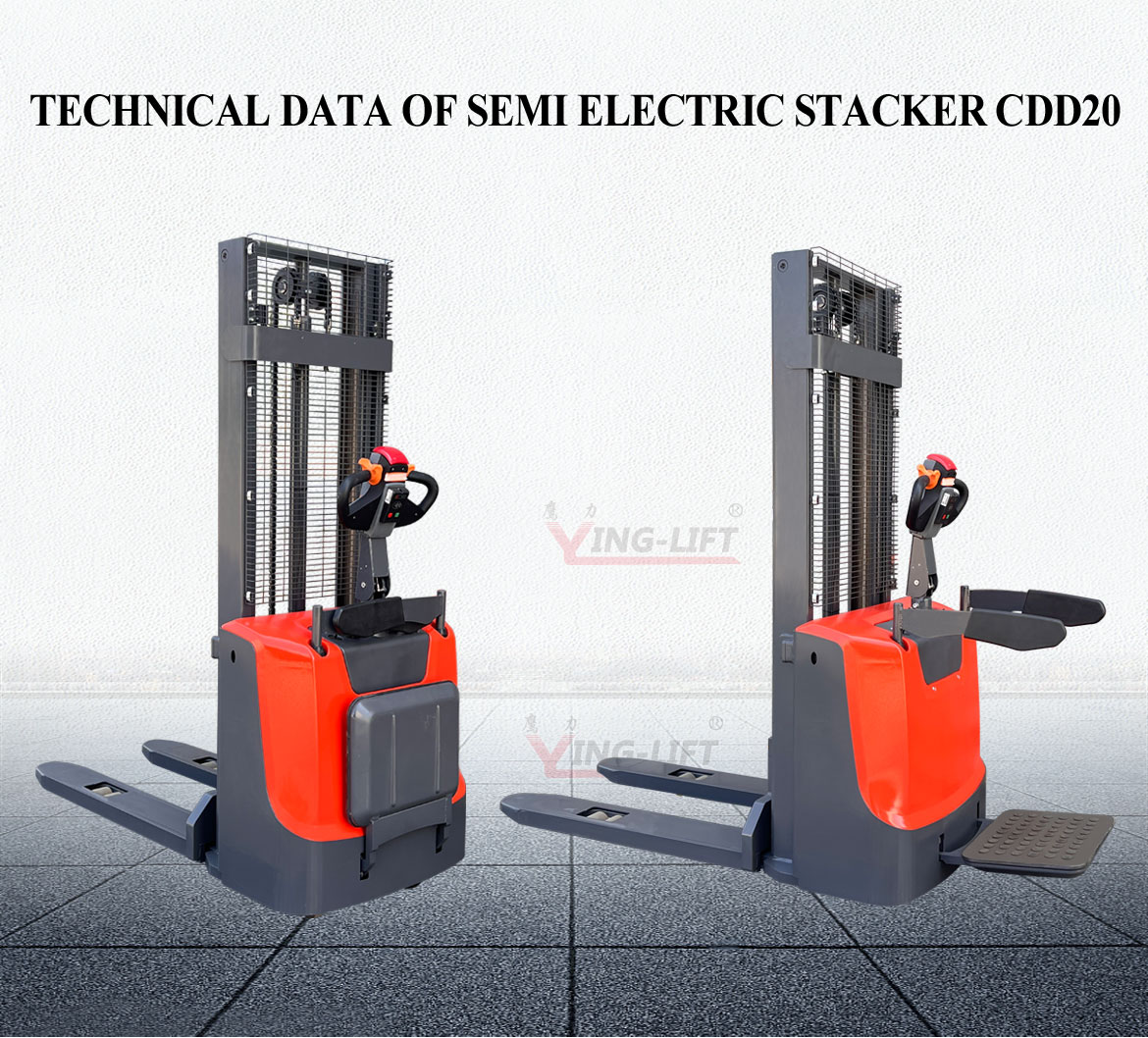

CDD20 Technical data of semi electric stacker CDD20

Introduce

◆The 48V drive system provides powerful power, precise control and smooth operation;
◆C-type + H-type channel steel mast, it has excellent bending performance;
◆The hydraulic system includes explosion-proof design to avoid the rapid drop of theframe when the oil pipe breaks and improve safety;
◆The standard speed reduction switch is equipped with the mast. When the door is raisecmore than 300mm, the driving speed is reduced and the operation safety is improved;
◆The mast is equipped with iron mesh cover, which can separate people and goods whilepreserving the vision, and protect the safety of the operator;
◆The handle is equipped with an emergency reverse function to prevent the driver frombeing crushed;
◆The handle is equipped with a turtle speed button to meet the needs of different drivingspeeds under different working conditions;
◆It's equipped with an emergency stop switch, which can be powered off in case of anaccident.
◆Standard pedal and protection arm, the pedal has automatic recovery function, theprotection arm is easy to open and close and has strong bending resistance, fullyprotect the driver's personal safety;
◆It's equipped with built-in charger and maintenance-free battery for easy charging11.Separated masks for easy maintenance, screw off the corresponding mask to repailthe main components.
